Details
IC Type: 16 Pcs LPD8806 IC/Meter
LED Quantity: 32 pcs SMD5050 LEDs/Meter
Power consumption: 10W/M
Width: 16.4mm
Length: 5m/reel
Working Voltage: DC5V
WaterProof: IP67 silicon tube
View angle: 120°
Functions: 2-LED Cuttable.
Lifespan: 50,000+hours
Guarantee: 2 years

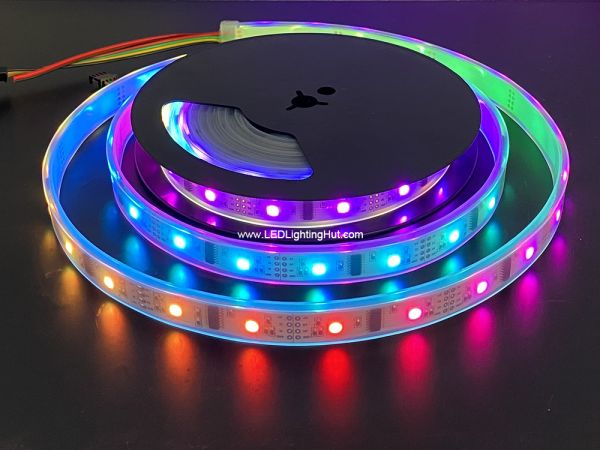

There are 32 RGB LEDs per meter of this digital lpd8806 strip. Each LED can be controlled individually. The LPD8806 chip has built in 1.2 MHz high speed 7-bit PWM for each channel, so that it can do 21-bit color per LED. You can set the color of each LED's red, green and blue. The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 2 digital output pins are required to send data down.
They come in 5 meter reels with a 4-pin JST SM connector on each end.
To Power a full roll of this lpd8806 strip, You must use at least 5V/10A power supply, do not use higher than 6V or you will destroy the entire strip.
Pls click here to check the detailed lpd8806 datasheet!
You may also be interested in the following product(s)
WS2801IC (256 scales) digital RGB led strip, 5 meters(16.4Ft) ,DC5VRegular Price: $153.00 Special Price: $127.00 |
WS2811 IC (256 scales) Intelligent LED Strips, DC5V input, 5 Meter, Waterproof |
TM18031IC(256 scale) Digital LED Light Strip, 5 M(16.4ft), 32 TM1803 IC/M and 32 SMD5050/MRegular Price: $137.00 Special Price: $106.00 |
LPD6803 Dream Color LED Strip, DC12V Input, 5M, 10 LPD6803 IC/M, 30 SMD5050/M |
5M(16.4Ft) TM1812 Intelligent Flexible LED Light Strip, DC12V + ControllerRegular Price: $231.00 Special Price: $179.00 |
Customer Reviews
- Get what I want. Review by Rustin L. Haase
-
Thanks a lot! The strip is made up of 2.5" segments. Each segment is independent and so you can cut the strip down on the segment boundaries. (Posted on 7/4/12)RATING - great digital addressable led stripReview by Brian P.
-
The LPD8806-based strips are easier to use than the HL1606, with fewer pins and only one library so this section will be nice and short! (Posted on 6/12/12)RATING - Awesome and cheapReview by Jeff Wright
-
I was skeptical of the stripper so I tested them on a piece of 30 ga kynar, making a dozen small strips on a single piece of wire. The result was a few surface scrapes and no nicks. (Posted on 5/18/12)RATING - Excellent!Review by Mike S.
-
Great product. I will be ordering more digital lighting products very soon. Keep up the good work. Many thanks. (Posted on 3/16/12)RATING - Cheap but AwesomeReview by S. Talbott
-
Since the strip operates @ 5v, I have been experimenting with creating my own Atmel based Controller so I can real-time animation control and create my own color animations. (Posted on 12/29/11)RATING
