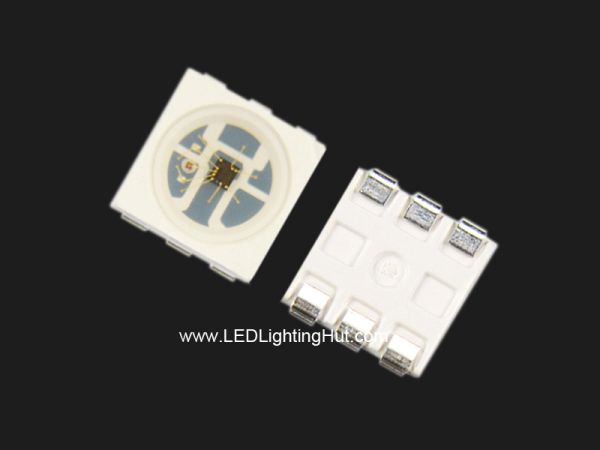

HD107S Digital 5050 RGB LED, High PWM Frequency, Full Reel of 1000
Two-wire synchronous control
Maximum frequency of 30MHZ serial data input, PWM 27KHZ
The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.
We have them straight off the factory floor in full reels of 1,000 LEDs packed in the aluminum envelop.
- Buy 10 for $159.50 each and save 11%
- Buy 30 for $149.50 each and save 17%
- Buy 50 for $139.50 each and save 22%
- Buy 100 for $129.50 each and save 28%
Voltage: 5.0V
LED wavelengths: 630nm/530nm/475nm
Brightness: Red 400-700mcd, Green 1000-1500mcd, Blue 300-500mcd
PWM frequency: 26KHZ
Dimensions: 5mm x 5mm x 1.6mm
HD107S is a two-wire transmission channel three (RGB) driving intelligent control circuit and the light emitting circuit in one of the LED light source control. Products containing a signal decoding module, data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low power consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double output, Data and synchronization of the CLK signal, connected in series each wafer output action synchronization. Refresh Frequency updates to 27KHZ.
Main Features
- Top SMD internal integrated high quality external control line serial cascade constant current IC，5V application.
- Control circuit and the RGB chip integrated in SMD 5050 components, to form a complete external control pixel, make the color mix uniformity and consistency.
- The two-wire synchronous control.
- The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness.
- The three constant current drive, self detection function specific signal.
- The maximum frequency of 30MHZ serial data input PWM:27KHZ.
- The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.
