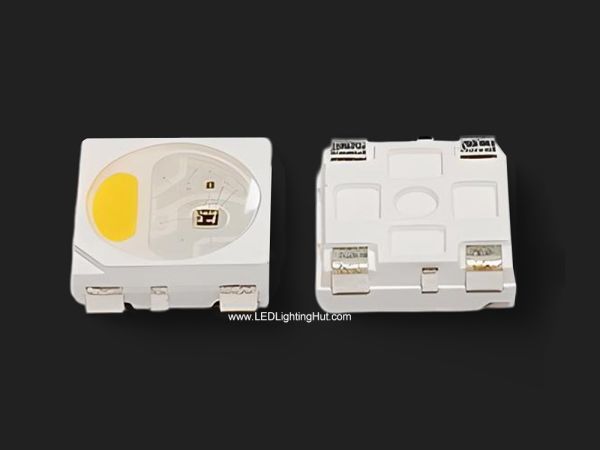

SKC6812RGBW Digital RGBW 5050 LED, Chip-Built-in, Full Reel of 1000
SKC6812RGBW smart LED with a White Casing version! 5.5x5.0x1.6mm Top SMD Type 0.25 Watt Power tegrated light source Intelligent control LED. RGBWS(2800-3200K Warm White), RGBNW(3800-4200K Natural White), and RGBBW (6000-7000K Coolr White) options are available.
We have them straight off the factory floor in full reels of 1,000 LEDs packed in the aluminum envelop.
- Buy 10 for $129.50 each and save 11%
- Buy 30 for $119.50 each and save 18%
- Buy 50 for $109.50 each and save 25%
- Buy 100 for $99.50 each and save 32%
SKC6812RGBW is a smart LED control circuit and light emitting circuit in one controlled LED source,which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving),high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

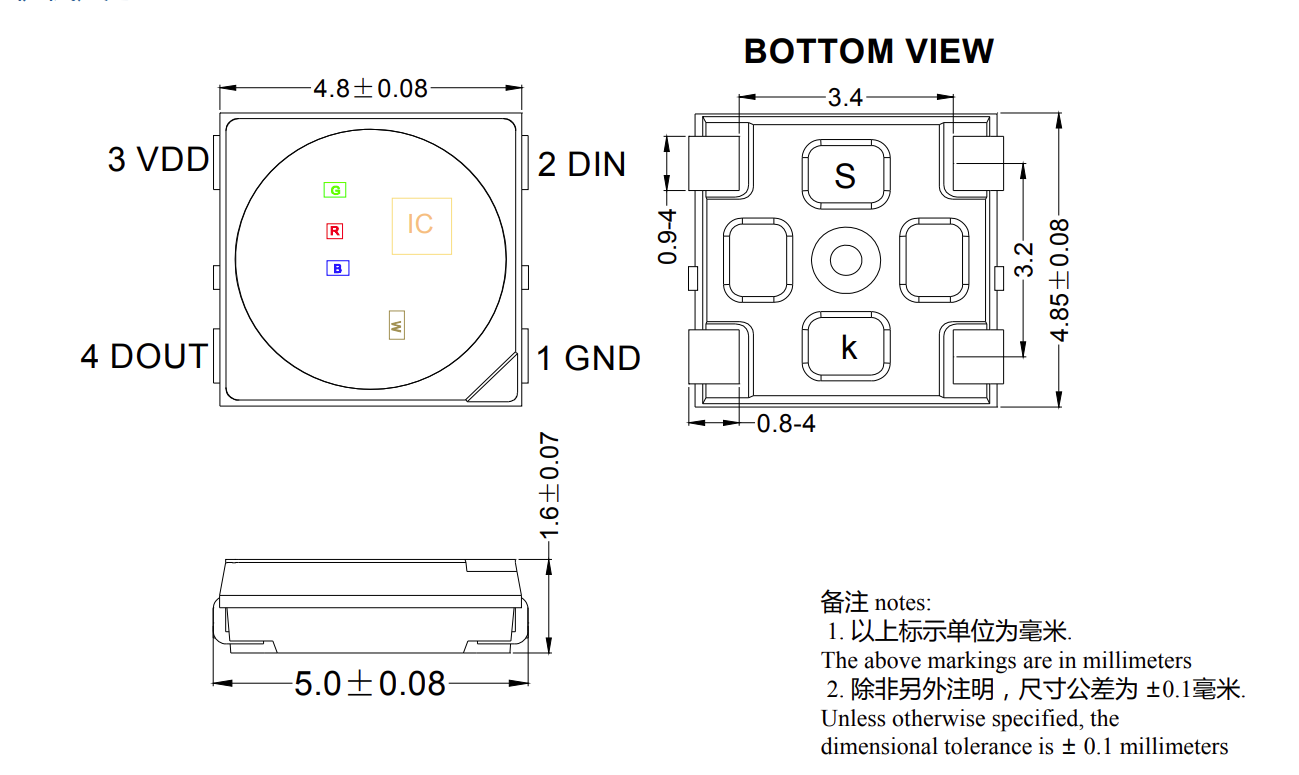

Mechanical Dimensions:
