SK6812MINI-RV Digital Addressable SMD LED, Full Reel of 1500
3.5x3.7x1.1 mm dimensions, 5V@12mA (OUT GRB)
Control circuit and the RGB chip in SMD 3535 components, to form a complete control of pixel, color mixing uniformity and consistency.
We have them straight off the factory floor in full reels of 1,500 LEDs packed in the aluminum envelop.
View the SK6812MINI-RV datasheet for all technical details
- Buy 5 for $209.50 each and save 5%
- Buy 10 for $199.50 each and save 9%
- Buy 30 for $189.50 each and save 14%
- Buy 50 for $179.50 each and save 18%
SKC6812MINI-RV is an intelligent external LED light source that integrates control circuits and light emitting circuits. Its appearance is the same as an SMD3535LED bead, and each component is a pixel. The interior of the pixel contains an intelligent digital interface data locking signal shaping and amplification driving circuit, a power supply stabilizing circuit, a built-in constant current circuit, a high-precision RC oscillator, and the output driver adopts patented PWM technology, effectively ensuring high color consistency of the light inside the pixel.
The data protocol adopts a unipolar return to zero code communication method. After the pixel is powered on and reset, the DIN terminal receives the data transmitted from the controller. The first 24bit data sent is extracted by the first pixel and sent to the data latch inside the pixel. The remaining data is processed and amplified by the internal shaping circuit, and then transmitted to the next cascaded pixel through the DO port. After each pixel transmission, The signal is reduced by 24 bits. Pixel points adopt automatic shaping and forwarding technology, so that the number of cascaded pixels is not limited by signal transmission, only limited by signal transmission speed requirements.
LED has the advantages of low voltage driving, environmental protection and energy conservation, high brightness, large scattering angle, good consistency, ultra-low power, and ultra-long lifespan.
Integrating the control circuit onto the LED makes the circuit simpler, smaller in size, and easier to install.

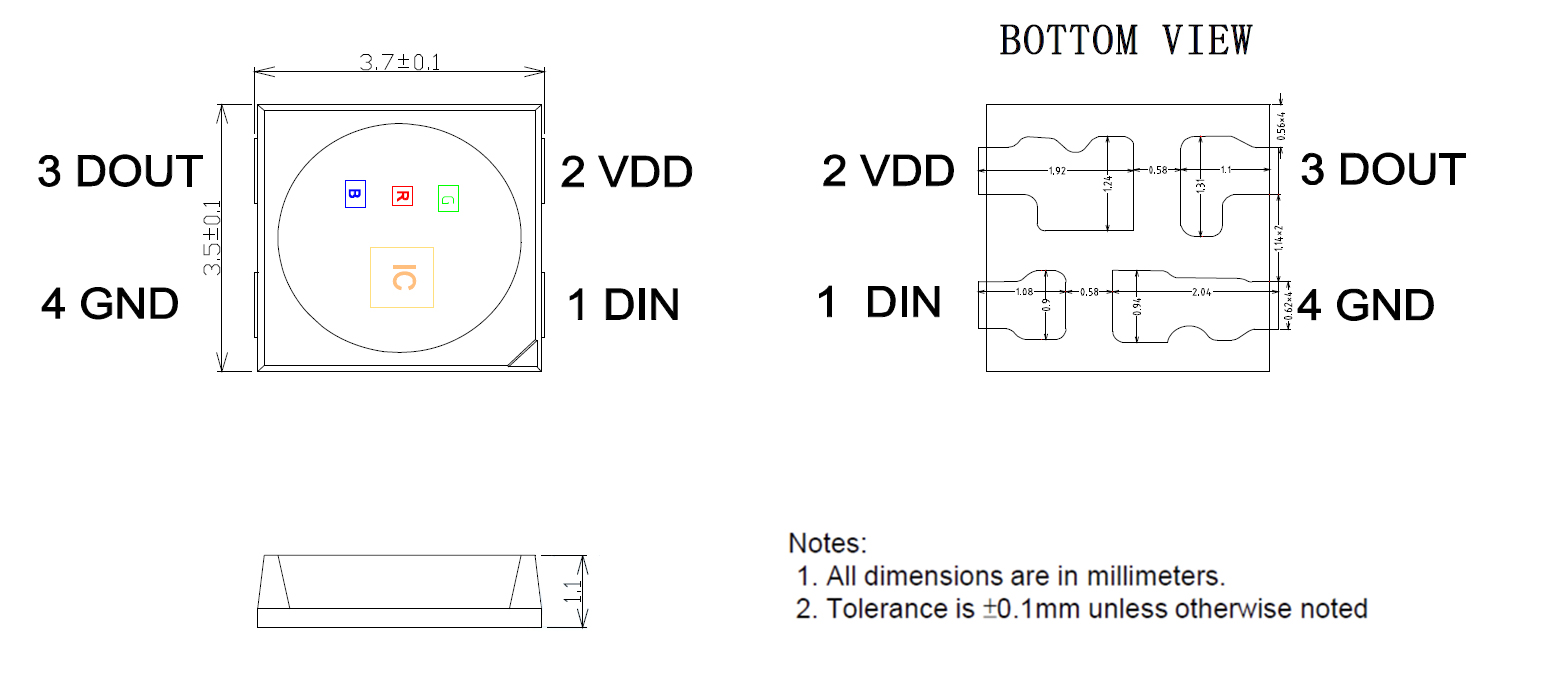

Mechanical Dimensions:
