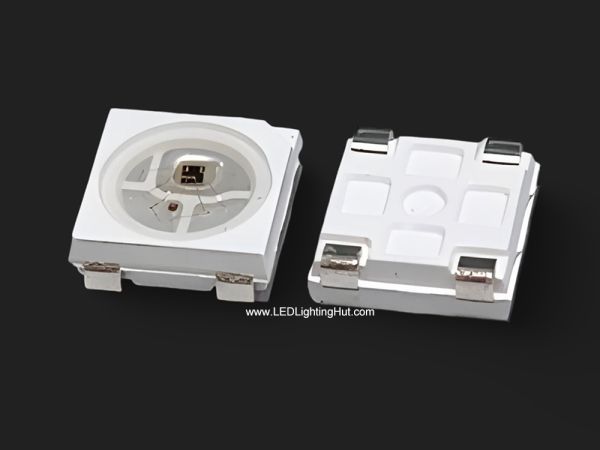

SKC6812RV Digital RGB 5050 LED, Chip-Built-in, Full Reel of 1000
5.0x4.8x1.6 mm 0.2W Intelligent external control surface mount SMD LEDÂ
more durable against negative polarity and high voltage spikes on the power lines.
Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec
We have them straight off the factory floor in full reels of 1,000 LEDs packed in the aluminum envelop.
- Buy 5 for $129.50 each and save 7%
- Buy 10 for $119.50 each and save 14%
- Buy 30 for $109.50 each and save 22%
- Buy 50 for $99.50 each and save 29%
SKC6812RV is an intelligent external control LED light source, which integrates control circuit and light-emitting circuit. Its appearance is the same as a SMD5050 side light-emitting LED bead, each component is a pixel. Pixel points contain intelligent digital interface data latch signal shaping and amplifying drive electric wheel, power supply voltage stabilization circuit, built-in constant current circuit, high precision RC oscillator. The output driver adopts patent PWM technology, which effectively guarantees high color consistency of light in the pixel points.
The data protocol being used is unipolar RZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

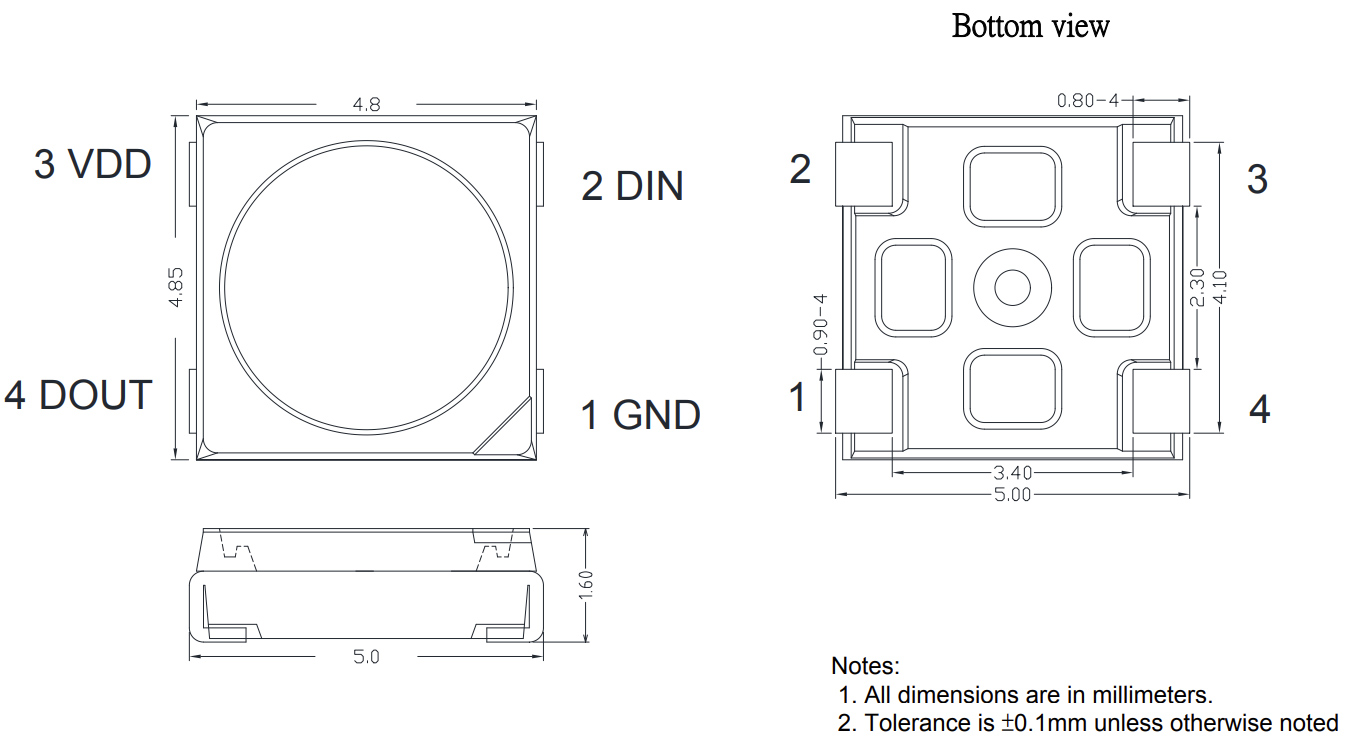

Mechanical Dimensions:
