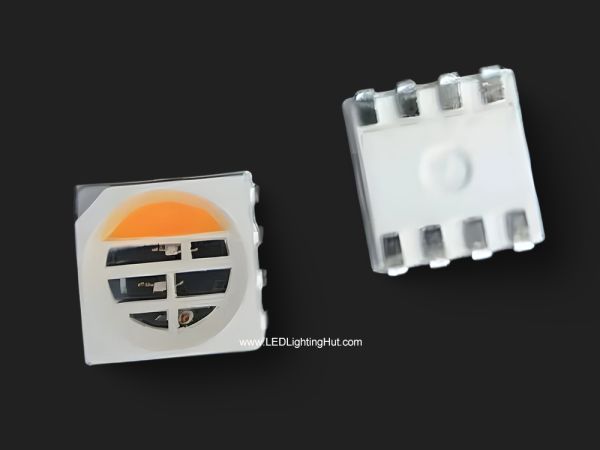

Surface Mount RGBW 5050 SMD LED, Full Reel of 1000
5.5 mm x 5.0 mm x 1.6 mm Top SMD, 0.4W power
RGBWW (2700-3200K Warm White), RGBNW(4000~4500K Natural white), RGBCW(5500-6500K Cool White) available.
We have them straight off the factory floor in full reels of 1,000 LEDs packed in the aluminum envelop.
View the S50RGBX datasheet for all technical details
- Buy 5 for $129.50 each and save 7%
- Buy 10 for $119.50 each and save 14%
- Buy 30 for $109.50 each and save 22%
- Buy 50 for $99.50 each and save 29%
Dimensions: 5.5 mm x 5.0 mm x 1.6 mm
Packages: Top SMD
Capsulated Resin: Silicone Resin with Aluminate Phosphor
Electrodes: Ag Plating
Chips: Total 4 chips packed in a cavity
These SMD LEDs are packaged in the industry standard CLPP6 package. These high-reliability and high-brightness LEDs are designed to work in a wide range of environmental conditions and are ideally suited for use in illumination applications. Their wide viewing angle makes these LEDs ideally suited for channel letter, or general backlighting and illumination applications. The flat top emitting surface makes it easy for these LEDs to mate with light pipes. All components are produced by packing high-performance LED chips and silicon resin with proprietary phosphors.

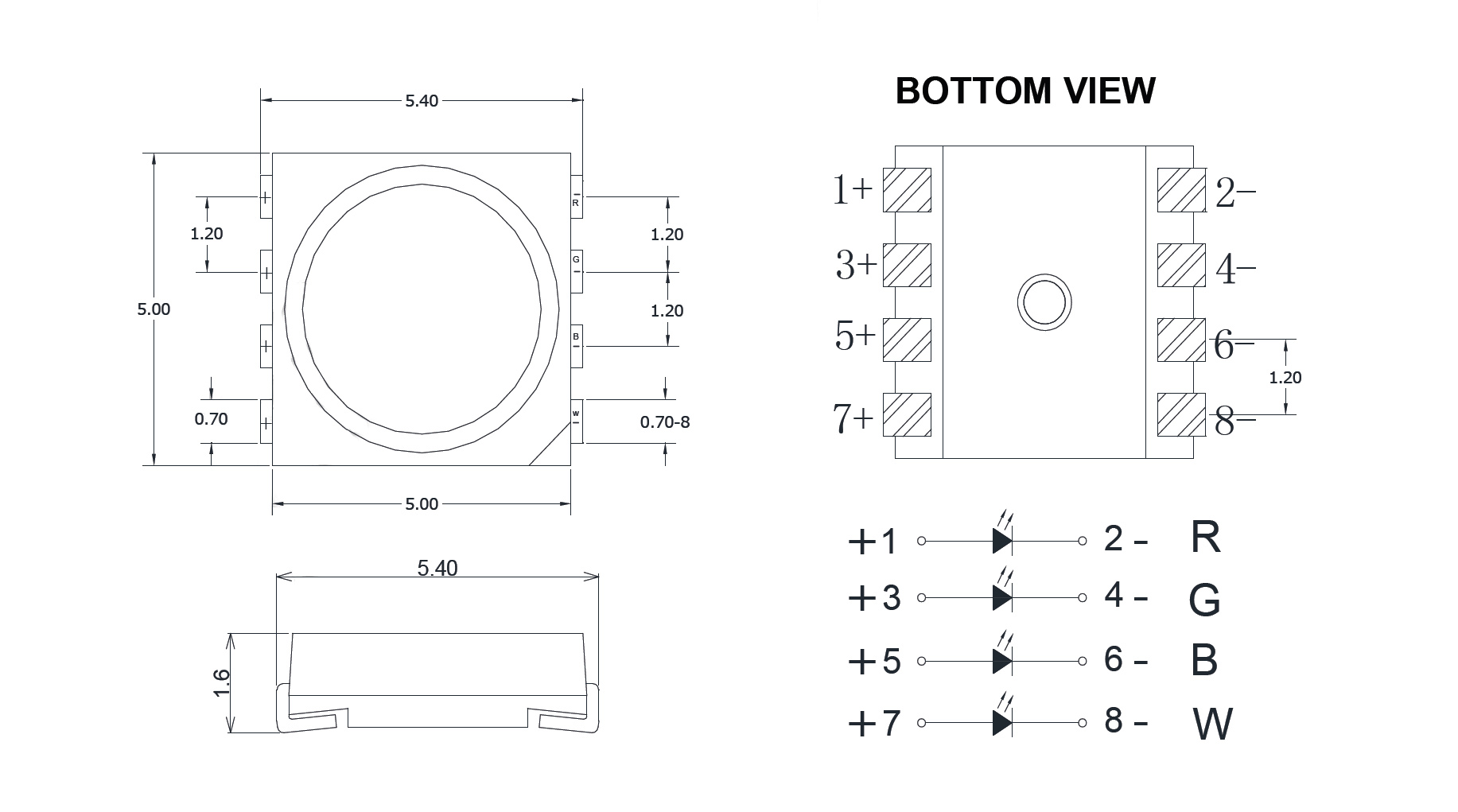

Mechanical Dimensions:
