Mitsubishi SK PMMA Stranded Side Glow Fiber Optic Cable Spool for Pools and SPA Lighting
Light attenuation is only less than 0.2dB/m, typically used for fiber optic swimming pool lighting and sign lighting applications
these various strands of 14/42/98 strands edge emitting fiber optic are used in perimeter pool light and stair light.
UV protected and has an alagecide and fungicide treated exterior jacket for maximum durability.
These fibers are custom-made products, and will take approximately 3-5 working days lead time.
Standard spool length is 100meter. If you need the fibers less than 100m, contact us!
Standard length: 100 meters per spool
Inner fiber optic filament: Diameter of 1.0 mm Mitsubishi fiber optic fibers
Multi – Strands: 14/42/98 strands
Out diameter: 6/12/18 mm
Jacket material: Transparent , anti-ultraviolet PVC
Work temperature: -60°C – 170°C
Lifespan: Over 50,000 hours

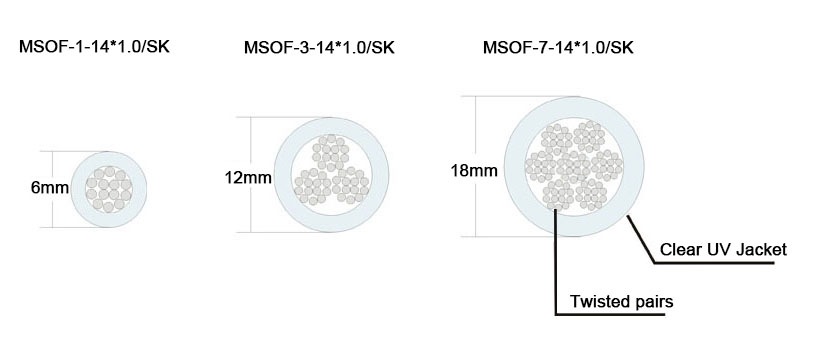

|Model||Stranded Fibers||Typical Attenuation(dB)||Outer Dia. (mm)||Spool Length||Jacket||Bending Radius|
|MSOF-1-14*1.0/SK||14x1.0mm||<0.2dB/m||6mm||100m (328 Ft)||Clear PVC||36mm|
|MSOF-3-14*1.0/SK||42x1.0mm||<0.2dB/m||12mm||100m (328 Ft)||Clear PVC||72mm|
|MSOF-7-14*1.0/SK||98x1.0mm||<0.2dB/m||18mm||100m (328 Ft)||Clear PVC||108mm|

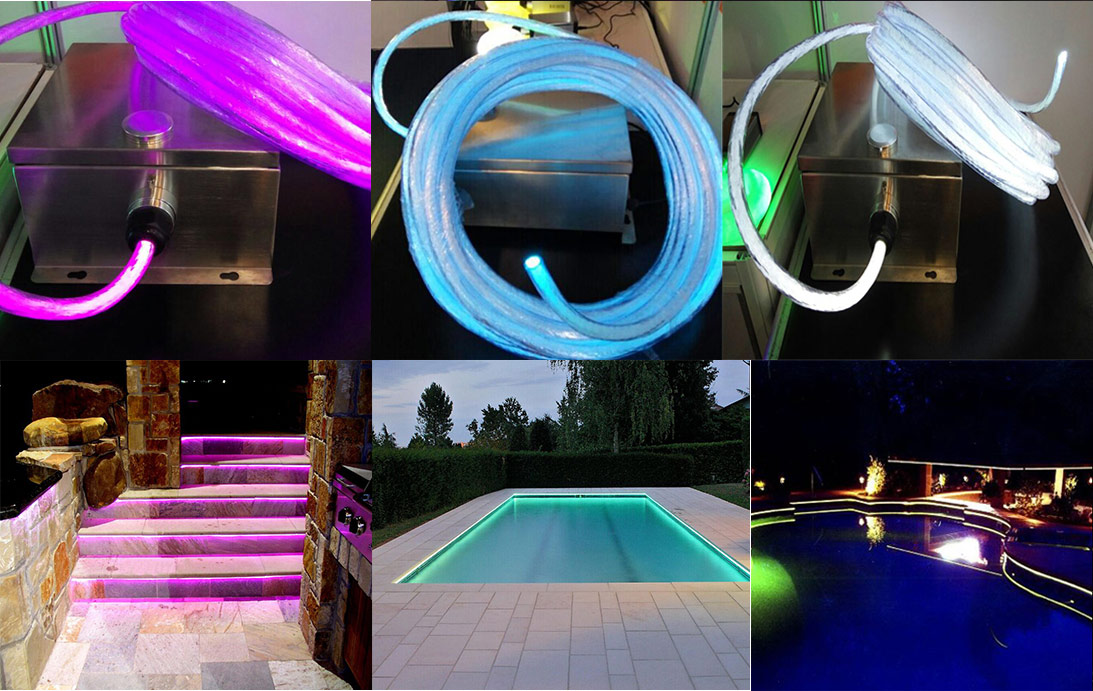

Strand Side Glow Fiber Optic Swimming Pool Lighting Applications
- Outdoor 80W Color Wheel LED Fiber Optic Illuminator, Replace 150W Metal Halide IlluminatorSpecial Price $699.00 Regular Price $799.00
- 80 Watt Color Wheel LED Fiber Optic DMX Illuminator, 150W Metal Halide Illuminator ReplacementSpecial Price $599.50 Regular Price $699.00
- 150W LED Fiber Optic Illuminator w/ Color Wheel, Replace 250W MH Light EngineSpecial Price $799.50 Regular Price $899.00

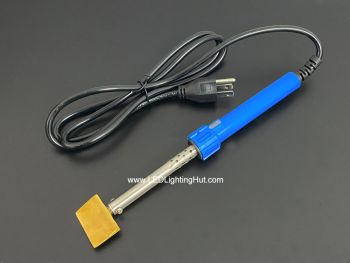

- Hot Knife for Cutting Optic FibersSpecial Price $39.50 Regular Price $50.00
